Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: BESD
  • Model Number: BESD-Mesh screen
  • Usage: Indoor, rental movable stage
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 10mm 12.5mm 16mm 31.25mm
  • Screen Dimension: rental movable transparent stage any size
  • Product: rental movable grid mesh strip curtain
  • Pixel pitch: 10mm 12.5mm 16mm 31.25mm
  • LED type: SMD and DIP for option
  • Brightness: 1200Nits - 6000Nits
  • cabinet material: Aluminum alloy
  • Waterproof: IP65 on front side
  • Weight: 7kg - 15Kgs/cabinet
  • Installation: fast lock
  • Service: 11 years

Packaging & Delivery

Packaging Details airfreight case, fumigation plywood case
Delivery Time 1 day - 25days


Transparent mesh strip led curtain
1,rental movable stage
2,Installation by fast lock
3,Aluminum slim cabine
4, Life 11 year

Transparent mesh strip led curtain
1,rental movable stage
2,Installation by fast lock
3,Aluminum slim cabine
4, Life 11 year

Advantage :

Pixel pitch

10mm , 12.5mm, 16mm, 31.25 mm

LED Encapsulation type

SMD 3528

DIP 546

Module Pixel

P10- 32x32pixels;

P12.5- 16 X 16 pixels;

P16 - 16x16pixels;

P31.25 - 8x8pixels

refresh frequency

600 Hz

Module Size

P10- 640x960mm ;

P12.5- 600 X 600 mm ;

P16 - 640 x 640mm;

P31.25 - 500x500mm

Horizontal View Angel

≥  120°  ( 60 off center )

lattice density

P10- 10000dots/m2 ;

P12.5- 6400dots/m2

P16- 3906dots/m2 ;

P31.25 - 1024 dots/m2

Working Environment

Temp:-20C~+60C; Humidity:10~90%

Pixel form( Optional)

1 Red, 1Green, 1Blue

Working voltage

110V~± 15%   or  230V~ ± 15%

optimum viewing distance

8 m ---1Km

Max  power consumption

600 W/m2

Drive mode(optional)

Static Constant current

Gray scale

Display color≥16.7M ;12 bit / color


2000 - 5000 CD/ m2

Color display

≥1.07 billion

Cabinet weight

7 kg - 15kg / cabinet

Blind LED lamp rate


Display Function

Graphics, Animation, and Video

Waterproof Class


Life time

100000 hours


2 Years



Display contents real-time updates; high brightness; high definition; size and shape can be designed upon client's sactual requirement; exquisite, vivid display effects; big viewing angle etc.

The full color LED Display has brought us a colorful world, and attract more viewers for less cost than other standard media using targeted messages that capture your audience with light, motion and color.

Widely applications:
Mainly used to do outdoor advertisement just like TV, in addition, it also can be used to play the Events, Showing, Cinema and etc.

Factory profile:
BesdLED has 14 years experience of LED lamps encapsulation,
7 years of LED display screen, with complete special LED test lab, LED display R&D system, production system, QA, QC system.
BesdLED passed ISO9001:2000 in 2004, our products also passed CE, RoHS approval.
Our products have already exported to Europe, Asia, Africa and America and etc.


Photos ,

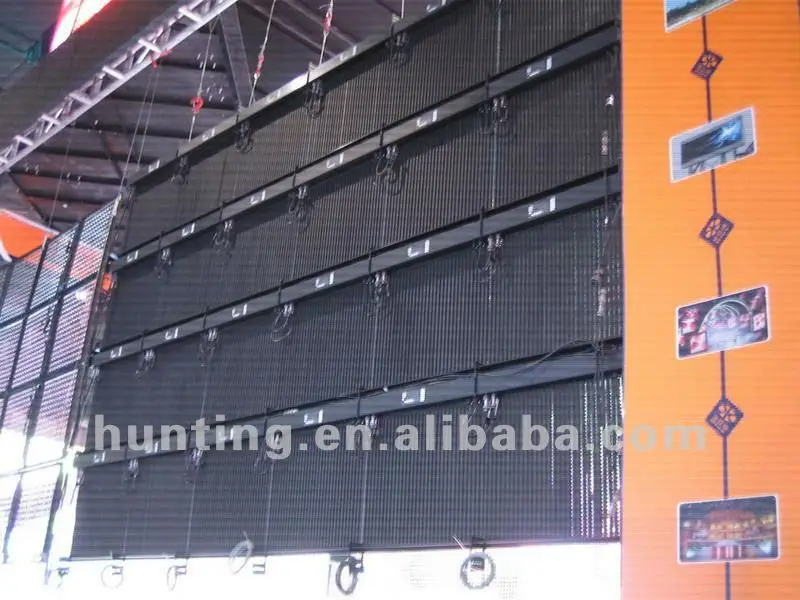

 P31.5 , mesh strip led screen , with fast lock , for rental movable cabinet ,front viewing :

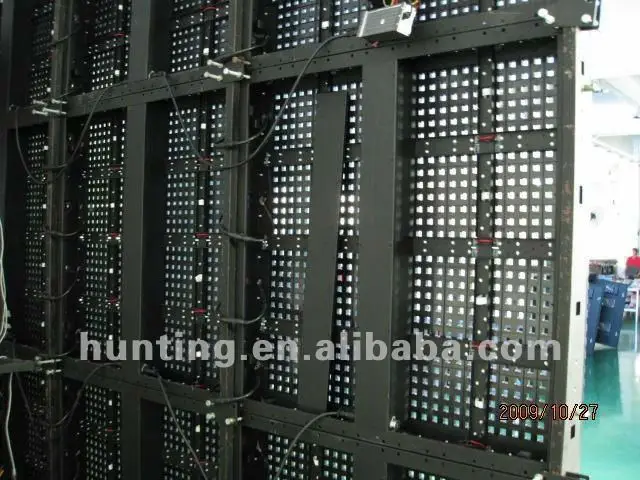

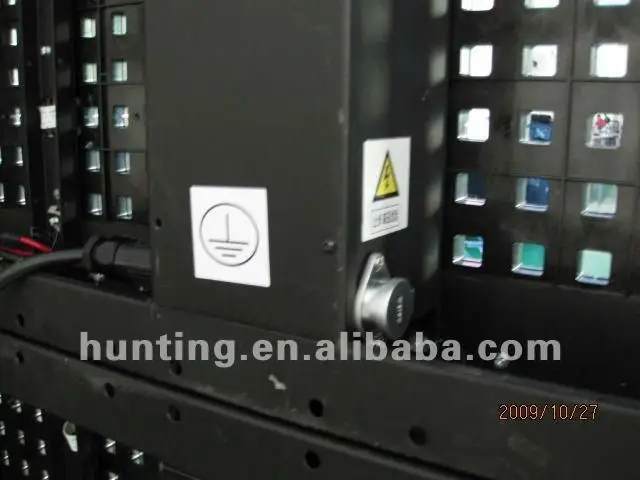

Backside cabinet , P31.25 mesh strip , indoor transparent :

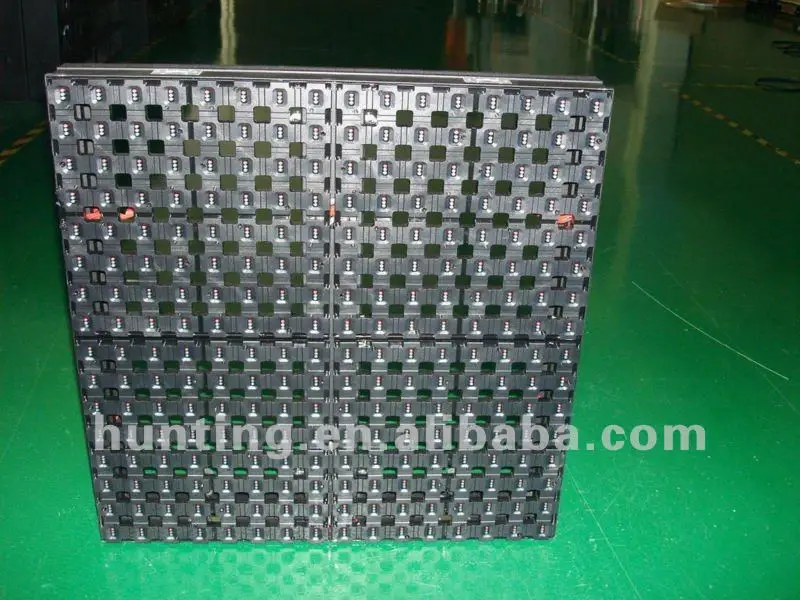

P31.25 mesh grid screen , transparent cabinet,  size 500mm x 500mm,  backside viewing ,
Front side viewing,   p31.25 mesh grid cabinet ,
Fast lock by hand, in  mesh P31.25 grid :
Real image effect , P31.25 mesh , viewing from 10meter distance :

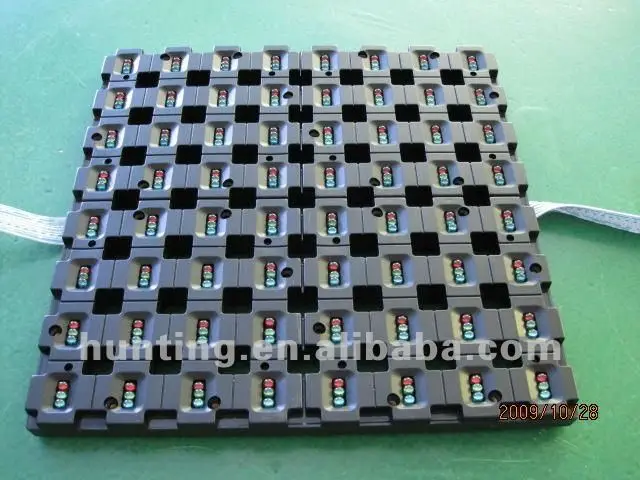

Mesh grid p31.25 module , details zoom in :
P31.25 mesh grid screen panel , after assembly in workshop ,  showing .
Mesh screen , P31.25 specs , mark stick in back cabinet ,

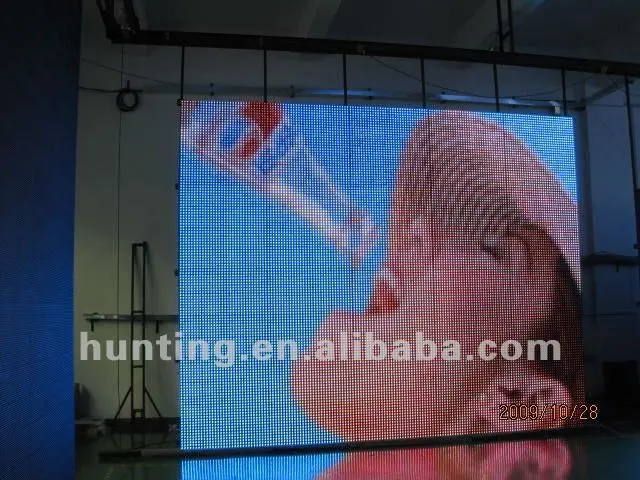

P31.25 mesh screen ,  transparent  curtain led screen , viewing 2meters.

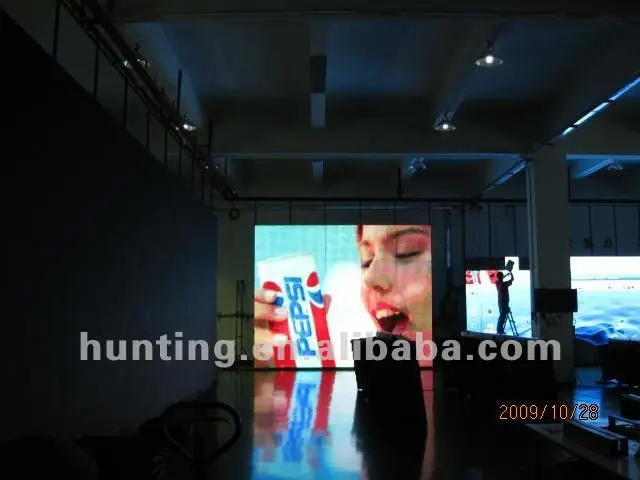

after installation in workshop , viewing distance 5meters ,  P31.25 mesh screen, showing room .

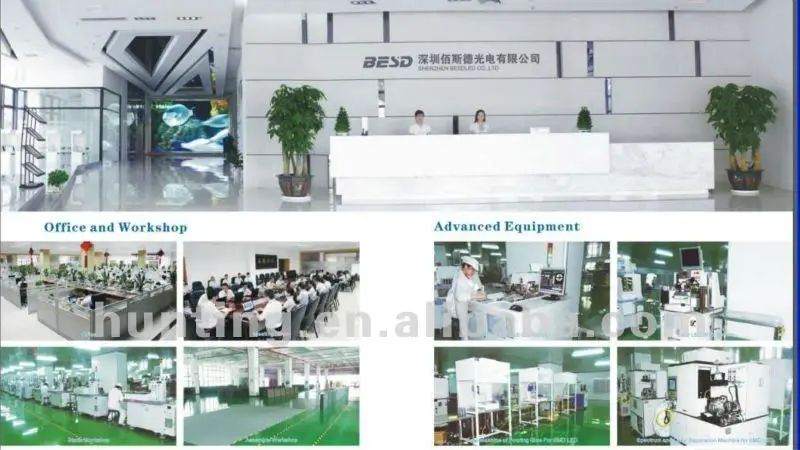

Manufacturer : shenzhen besdled co.,ltd. , profile , lobby, workshop , equipments shoqing,  real photos ,
Shenzhen besdled Co.,ltd. ,   certification approval , by SGS company ,  report
 for SHENZHEN BESDLED CO.,LTD.  manufacture , certification authorization :
